Bergisons Making Of

Right Console

Working time approx. 20 days. Oktober - November 2016

This panels are routed and engraved out of plexiglass like the ones on the MIP. You might notice not everything is 100% like in the real Hornet, as I reconfigured as well as added/removed some of the switches and added some annunciators to the original Standby Caution Panel.

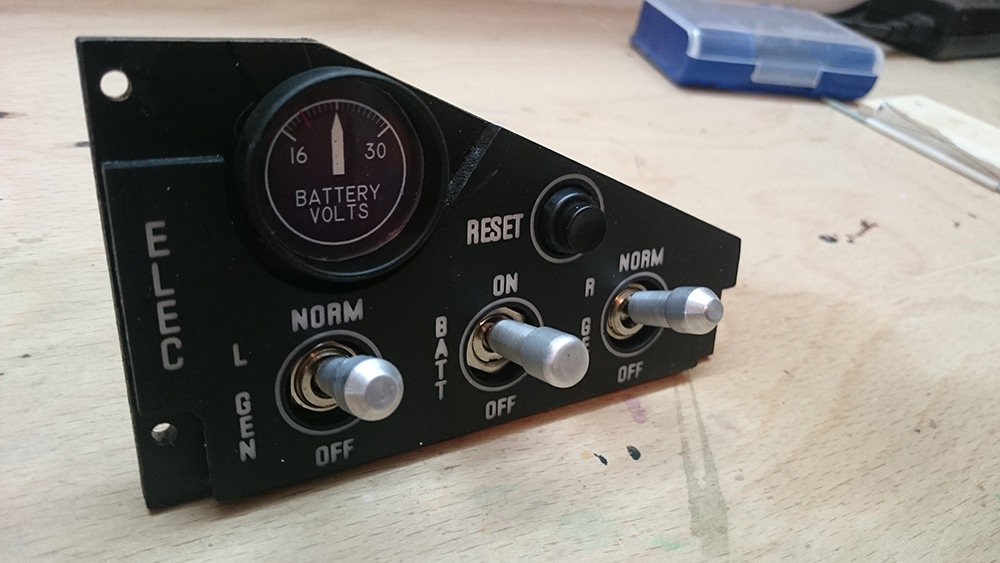

The ELEC panel The ELEC panel
The STBY CAUTION PANEL panel The STBY CAUTION PANEL panel

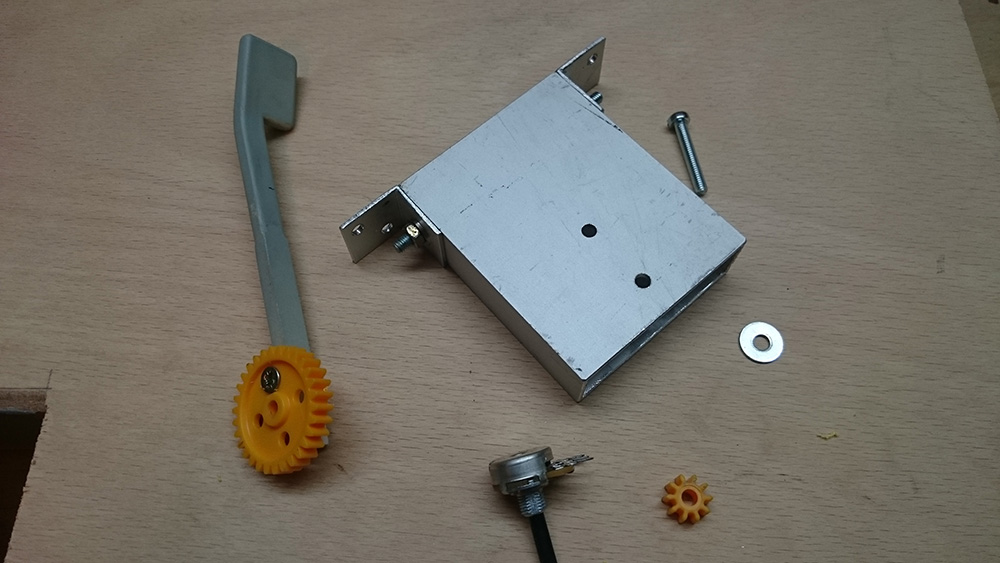

Making the DEFOG lever Making the DEFOG lever

SENSOR panel SENSOR panel
All Right Console panels finished and put together All Right Console panels finished and put together

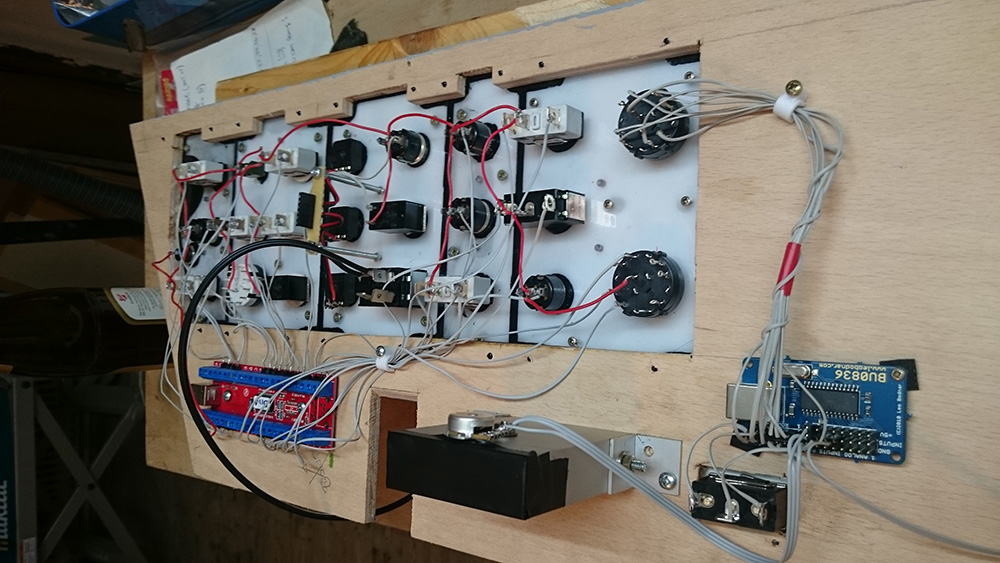

The Right Console from behind The Right Console from behind

Installing and connecting the console to the pit Installing and connecting the console to the pit
Done Done
With backlightning on With backlightning on



josue posted on 10.3.2021 at 19:42

what did you use for the back-lighting

Bergison

Hi josue, I use 12V LED strips mounted below the consoles.
